Duo Range

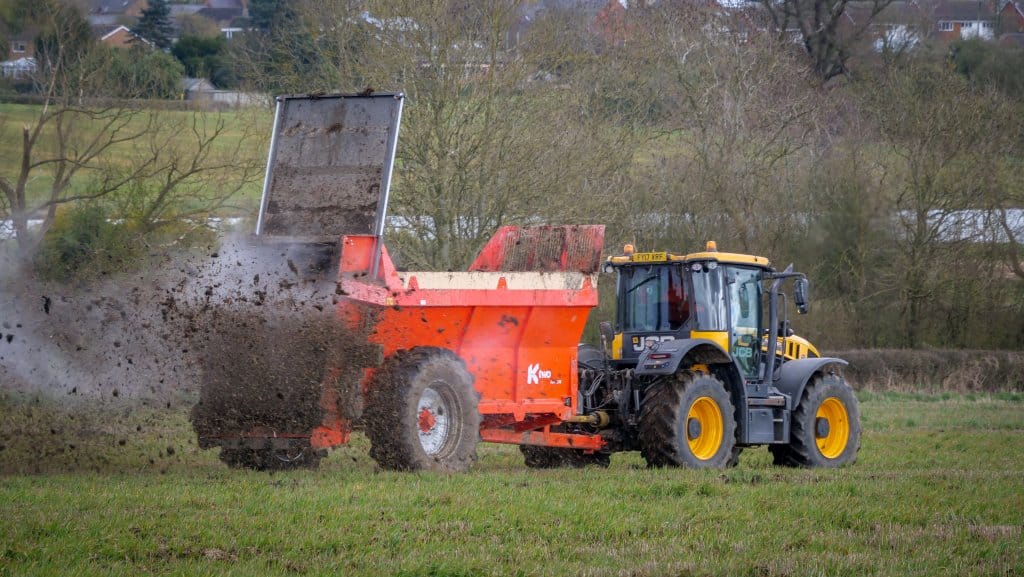

The Ktwo Duo Mk 5 range of twin vertical beater rear discharge muck spreaders offers a wide range of models to suit most farmers and contractors looking for a versatile manure spreader, capable of spreading a range of products with good accuracy and outputs. Available in capacities of 6–14 tonnes (9.8–21.0 m3) and with a wide range of optional extras, the Duo Mk 5 can be specified to suit most requirements.

Duo 600 Mk 5

9.8 cubic metre capacity

10 stud Commercial axle with 420x180mm brakes

4 x 14mm marine chain – 96 tonne breaking strain

Large diamater rear floor shaft with 6 tooth sprockets

420/85 R30 wheels

Duo 800 Mk 5

13.1 cubic metre capacity

10 stud Commercial axle with 420x180mm brakes

4 x 14mm marine chain – 96 tonne breaking strain

Large diamater rear floor shaft with 6 tooth sprockets

460/85 R38 wheels

Duo 900 Mk 5

15.1 cubic metre capacity

10 stud Commercial axle with 420x180mm brakes

4 x 14mm marine chain – 96 tonne breaking strain

Large diamater rear floor shaft with 6 tooth sprockets

460/85 R38 wheels

Duo 1000 Mk 5

17.0 cubic metre capacity

10 stud Commercial axle with 420x180mm brakes

4 x 14mm marine chain – 96 tonne breaking strain

Large diamater rear floor shaft with 6 tooth sprockets

520/85 R38 wheels

Duo 1100 Mk 6

18.7 cubic metre capacity

10 stud Commercial axle with 420x180mm brakes

4 x 14mm marine chain – 96 tonne breaking strain

Large 1050mm diameter spinning paddles

520/85 R38 wheels

Duo 1200 Mk 6

21.2 cubic metre capacity

10 stud Commercial axle with 420x180mm brakes

4 x 14mm marine chain – 96 tonne breaking strain

Large 1050mm diameter spinning paddles

580/70 R38 wheels

Duo 1400 Mk 6

23.2 cubic metre capacity

10 stud Commercial axle with 420x180mm brakes

4 x 14mm marine chain – 96 tonne breaking strain

Large 1050mm diameter spinning paddles

580/70 R38 wheels

Standard specifications

Rotors

  • Open flighted dynamically balanced rotors with our unique stepped rotor design
  • Stepped rotor flights to increase rotor strength
  • Faster 417rpm rotor speeds
  • Larger bottom spinner paddles for wider spreading widths
  • Rotor teeth made from hardened boron steel with 16mm bolt holes
  • Single piece Rogelberg rotor gearbox

Axles

  • 120mm square commercial axles on all models
  • 420 x 180mm S-Cam brakes
  • 25 – 35mm brake cylinders
  • Large wheels provide good flotation and traction in adverse conditions

Capacity

  • High cubic capacity to weight capacity ratio
  • Large capacity due to flared sides
  • 4 x 14mm marine floor chains with closely spaced slats
  • 6 tooth floor drive sprockets for prolonged sprocket and chain life

Drawbar

  • Bolt on fixed hitch – easy to swap to swivel or spoon
  • Single pole drawbar for improved manouverability
  • Optional sprung drawbar

Quality Build

  • Single piece body panels for increased strength
  • Shot blasted prior to painting
  • Finished with 130 micron 2 pack paint
