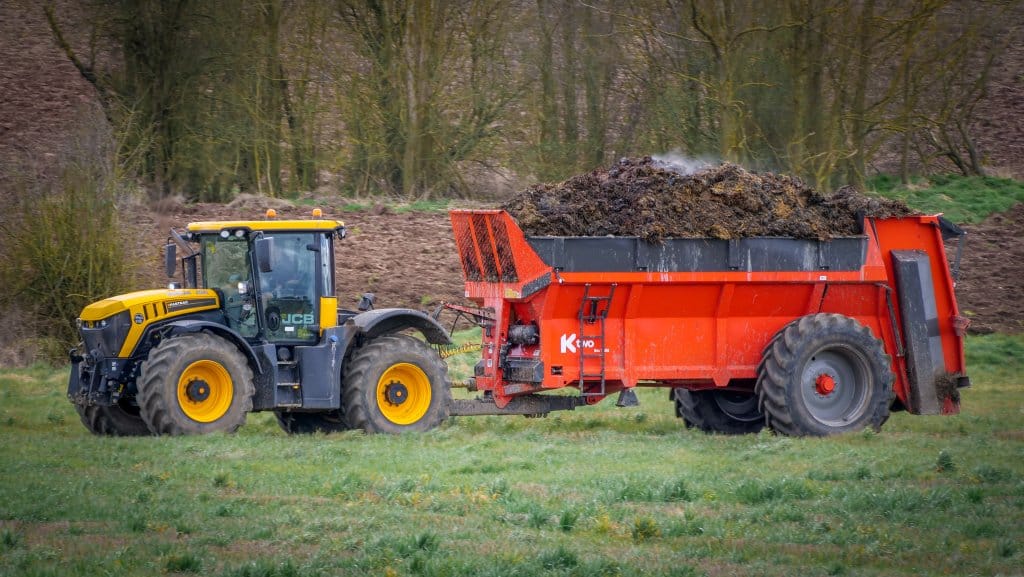

The Ktwo Bio range of twin horizontal beater rear discharge muck spreaders are designed with the most accurate of applications in mind. Capable of spreading a wide range of materials, these spreaders are the perfect choice when spreading higher value manures such as chicken litter at lower rates and wider working widths. Available in capacities of 14–36 tonnes and with a range of optional extras, these machines also feature an enhanced standard specification.
Bio Range
Bio 1400
21.5 cubic metre capacity
10 stud Commercial axle with 420x180mm brakes
4 x 16mm marine chains – 128 tonne breaking strain
Two large 1100mm diameter adjustable spreading discs
580/70 R38 wheels
Bio 1600
23.5 cubic metre capacity
10 stud Commercial axle with 420x180mm brakes
4 x 16mm marine chains – 128 tonne breaking strain
Two large 1100mm diameter adjustable spreading discs
580/70 R38 wheels
Bio 1800
25.4 cubic metre capacity
10 stud Commercial axle with 420x180mm brakes
4 x 16mm marine chains – 128 tonne breaking strain
Two large 1100mm diameter adjustable spreading discs
650/65 R42 wheels
Bio 2400 TANDEM
21.5 cubic metre capacity
10 stud Commercial axles with 420x180mm brakes
4 x 16mm marine chains – 128 tonne breaking strain
Two large 1100mm diameter adjustable spreading discs
560/60 R22.5 wheels
Bio 2600 TANDEM
23.5 cubic metre capacity
10 stud Commercial axles with 420x180mm brakes
4 x 16mm marine chains – 128 tonne breaking strain
Two large 1100mm diameter adjustable spreading discs
560/60 R22.5 wheels
Bio 2800 TANDEM
25.4 cubic metre capacity
10 stud Commercial axles with 420x180mm brakes
4 x 16mm marine chains – 128 tonne breaking strain
Two large 1100mm diameter adjustable spreading discs
560/60 R22.5 wheels
Bio 3800 TRI AXLE
30.1 cubic metre capacity
10 stud Commercial axles with 420x180mm brakes
4 x 16mm marine chains – 128 tonne breaking strain
Two large 1100mm diameter adjustable spreading discs
560/60 R22.5 wheels
Bio 2620 TANDEM
29.7 cubic metre capacity
10 stud Commercial axles with 420x180mm brakes
4 x 16mm marine chains – 128 tonne breaking strain
Two large 1100mm diameter adjustable spreading discs
710/50 R26.5 wheels
Bio 3820 TRI AXLE
36.3 cubic metre capacity
10 stud Commercial axles with 420x180mm brakes
4 x 16mm marine chains – 128 tonne breaking strain
Two large 1100mm diameter adjustable spreading discs
710/50 R26.5 wheels
Standard specifications
Rotors
- Twin horizontal beaters with hardox beater teeth
- Large diameter spreader discs give a spread pattern up to 30m wide
- Hydraulic opening rear canopy for easy and safe service access
- Sprung loaded adjustable bottom section of canopy door
- Rotors and spinners gearbox driven for improved driveline efficiency
Axles
- 150mm square commercial axles
- 420 x 180mm S-Cam brakes
- 35mm brake cylinders
- Large wheels provide good flotation and traction in adverse conditions
High Specification
- Hydraulic slurry door
- Torque limiting slip clutch
- Wide angle front PTO shaft
- Gearbox driven rotors
Capacity
- High cubic capacities due to flared body sides
- 4 x 16mm floor chains for lower chain wear and reduced stress on the floor drive
- 6 tooth sprockets give less sprocket wear
- 75mm diameter floor drive shafts
- 1,600mm internal body width
Quality Build
- Monocoque body enables larger tyres to be fitted without increasing transport width
- Shot blasted paint preparation
- Two pack 130 micron paint finish
NOTE: All capacities are approximate and based on in field use at 10km/h. It is the responsibility of the user to check the road legislation in their area.
*Specs are subject to change without prior notice.
